Early Color Television

Replica Motor Control Chassis for Gray Research Monitor

John Folsom recently acquired a Gray Research field sequential monitor which is missing its motor control chassis. In late 2013 John visited Bob Galanter and they fabricated this replica chassis.

Early Television

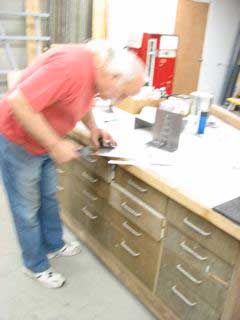

Bob cutting parts for the chassis

Early Television

The chassis and mounting bracket

Early Television

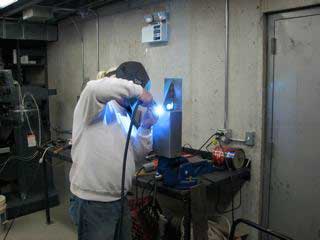

Welding the mounting bracket to the chassis

Early Television

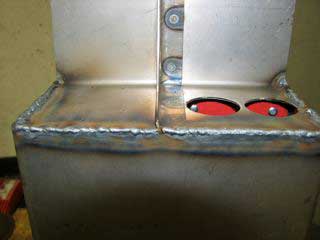

After the welding

Early Television

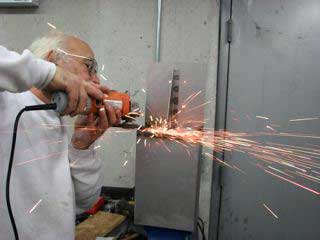

Bob grinds off the excess material

Early Television

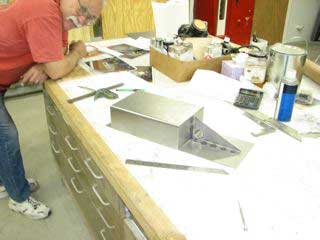

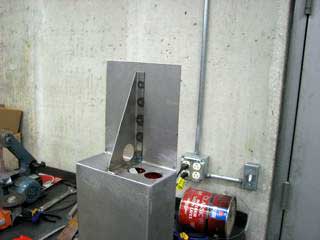

The two parts assembled

Early Television

John and Bob

Early Television

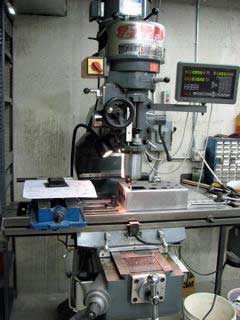

Cutting the holes for tube sockets, etc.

Early Television

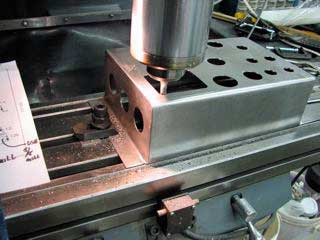

Routing out the hole for the power transformer

Early Television

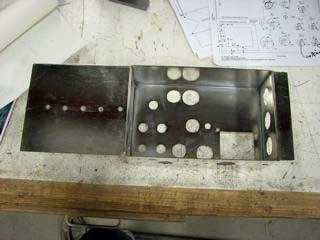

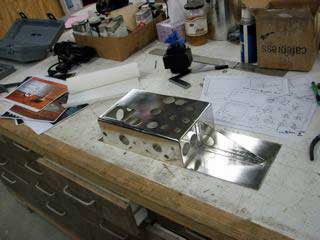

The finished chassis

Early Television

The view from the bottom

Early Television

The original chassis from the monitor at the Early Television Museum





The chassis will be tin plated. After a period of time it will acquire a dull finish similar to the original chassis.
