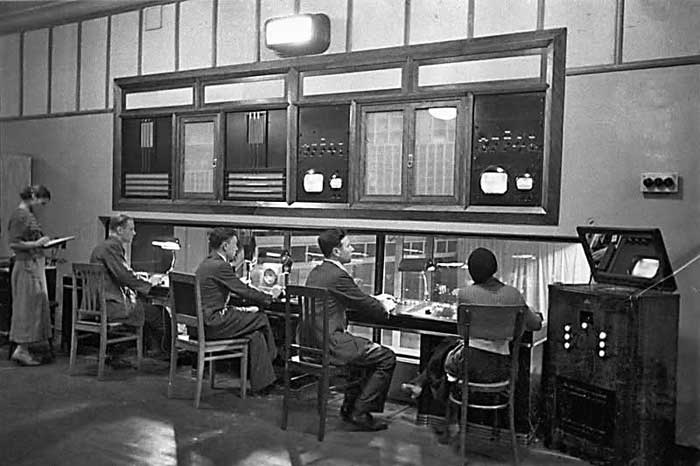

(James O'Neal, 4104 Javins Dr., Alexandria, VA 22310) copyright James O'Neal, all rights reserved. James O'Neal has been a collector of radio and television sets since his grade school days. Employed in radio and television broadcasting for 40 years, he does television facility design and systems integration for Worldnet Television (the video counterpart of the Voice of America). The views expressed in this article are his own. |
