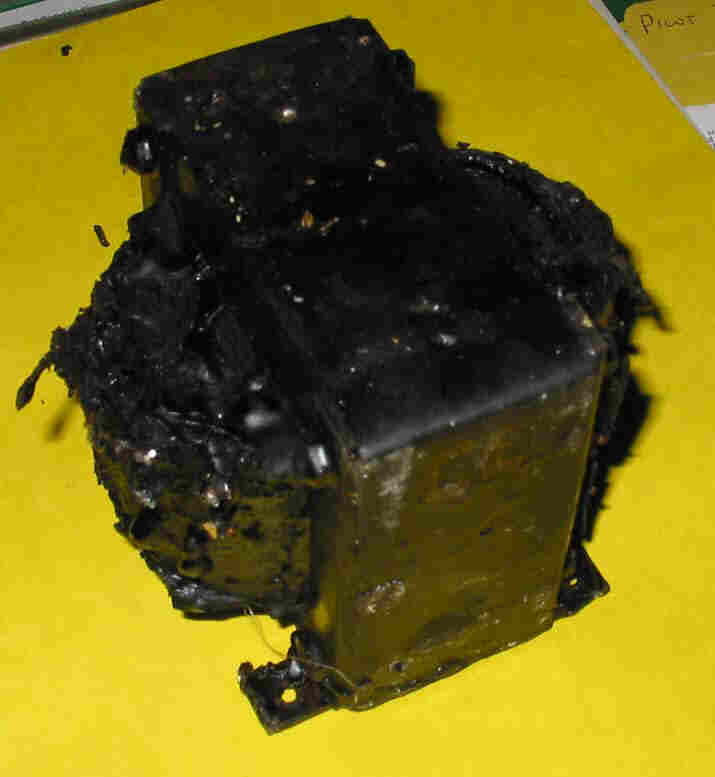

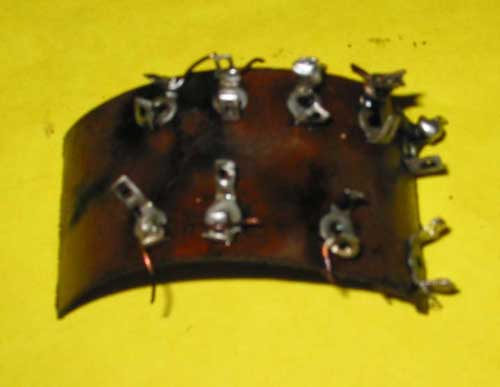

Here is the transformer after removal from the chassis: The two terminal strips were removed from the old transformer:

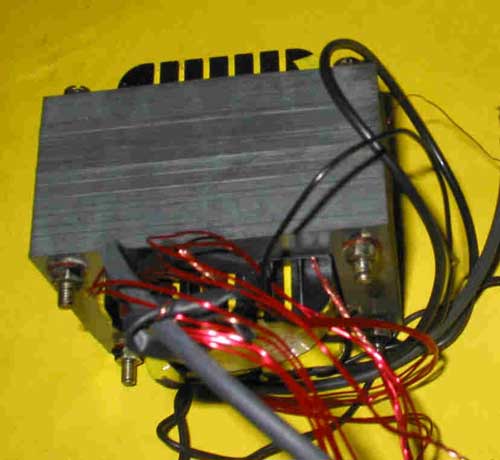

Here is the new transformer

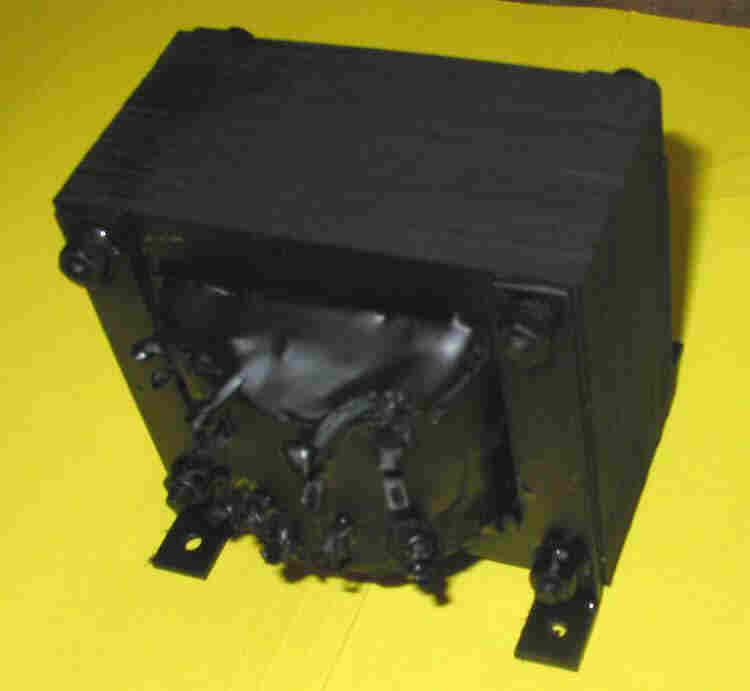

The terminal strips were then attached to the new transformer using hot glue. Insulating cambric was used between the filmanet leads and the high voltage leads under the terminal strips. Hot glue was used to seal the windings. The mounting brackets from the old transformer were installed on the new one. Finally, the transformer is spray painted flat black |
