Mechanical Television

Telefunken-Karolus Matrix Display

We originally thought this was made by RCA, since the photos came from the Sarnoff library. Paul Lindemeyer identified it as made by Telefunken-Karolus. Below are clips from an Italian dossier on tv dated 1936.

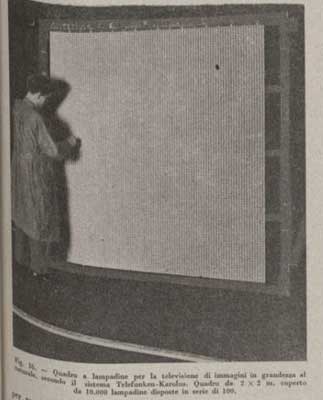

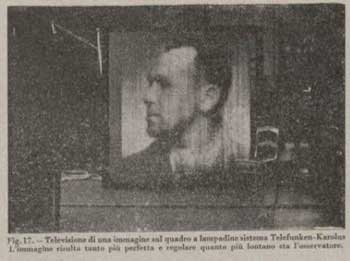

Captions indicate the Telefunken-Karolus system. The left (first) pic is on the ETF page, in hi-res scan. Consider too: Would RCA have built a 100 line matrix display in the early '30s, when doubling their system resolution every year and a half - from 60 to 120 to 240 - and going all out to refine the Kinescope at each step of the way,

Jenkins matrix display Bell Labs matrix display To make text larger in single column tables. To make text larger in single column tables. To make text larger in single column tables

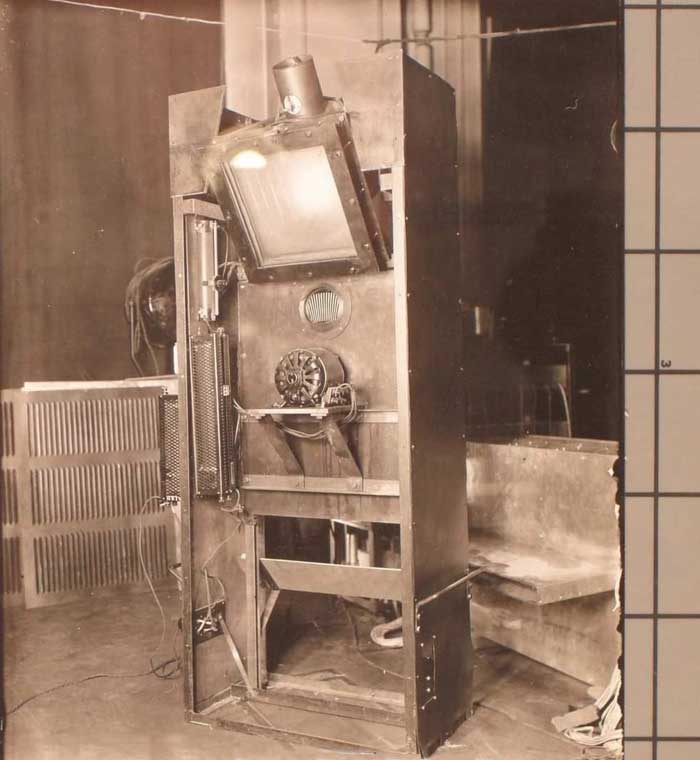

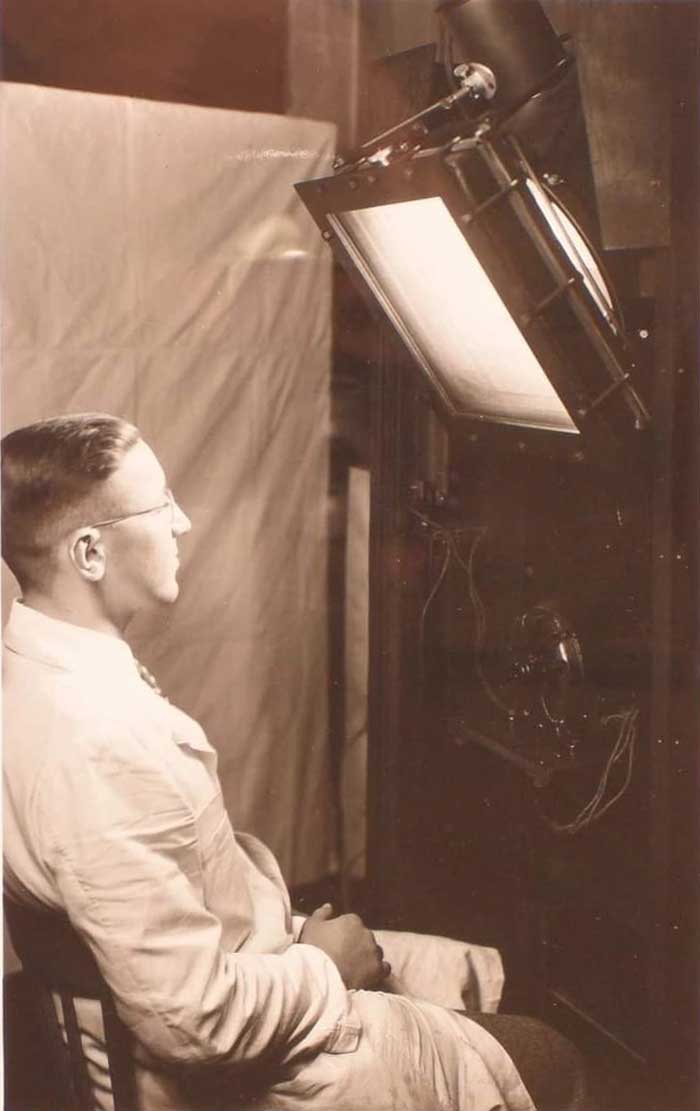

Subject in front of light source and scanning disk

Showing the motor that drives the disk

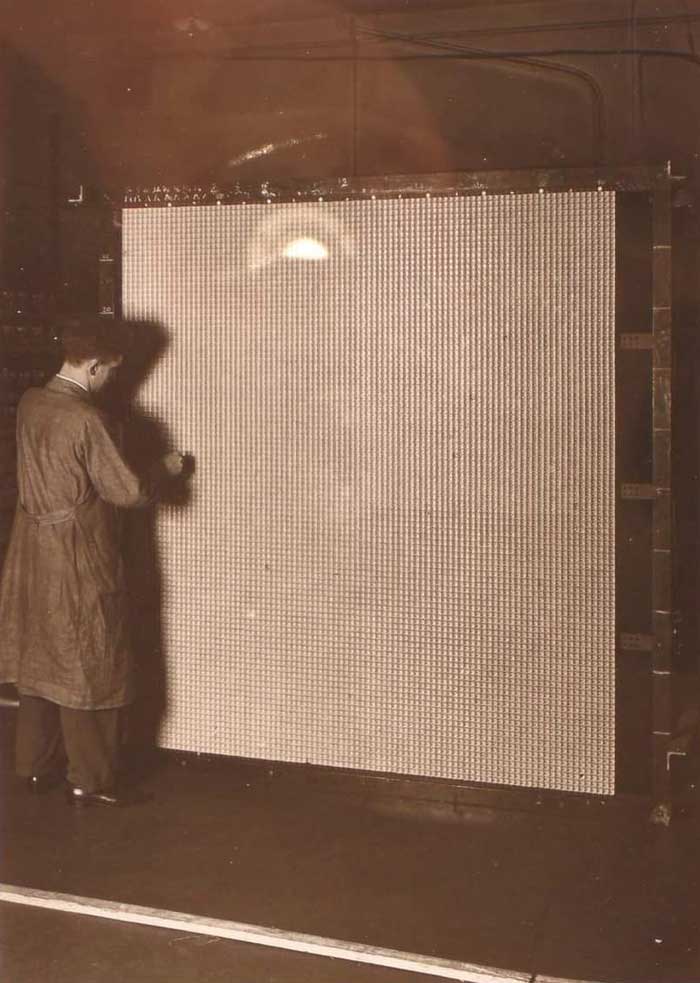

Huge matrix screen

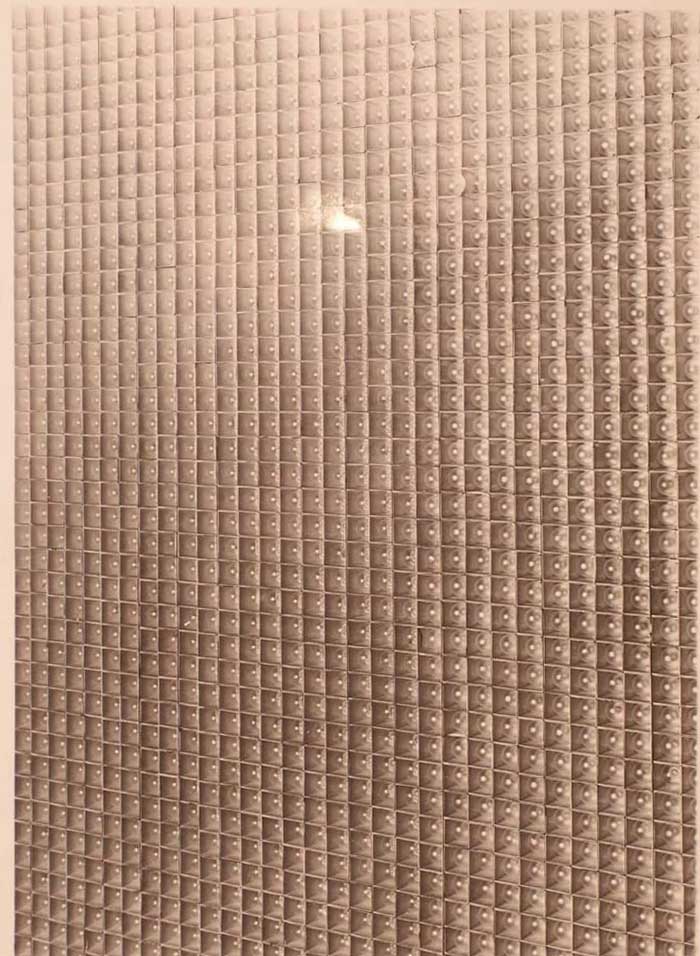

Closeup of screen, showing neon bulbs

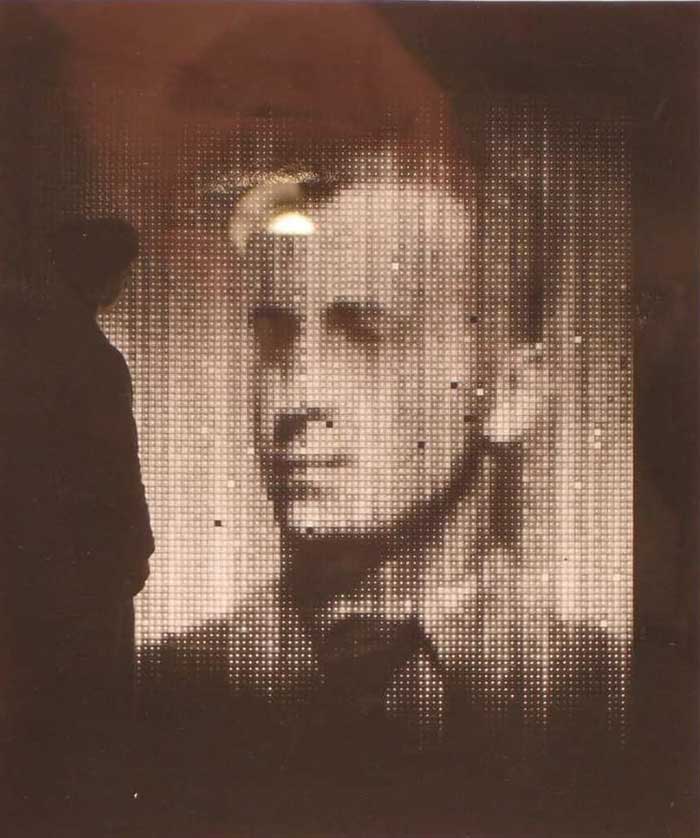

The picture it produced

Courtesy of Eyes of a Generation
