Diamond Power 300 Camera

Early Television

  • Instructions for Assemby and Operation
  • Instruction Book
  • Brochure
  • Testing
  • Popular Mechanics article
  • Diamond Power test pattern
  • Diamond Power Image Dissector camera
  • Model 400 Utiliview Vidicon camera
  • Model ST-2 Vidicon camera
  • Diamond Power STV-4
  • Information on Diamond Power cameras from Richard Diehl

Early Television

Courtesy of George Lemaster

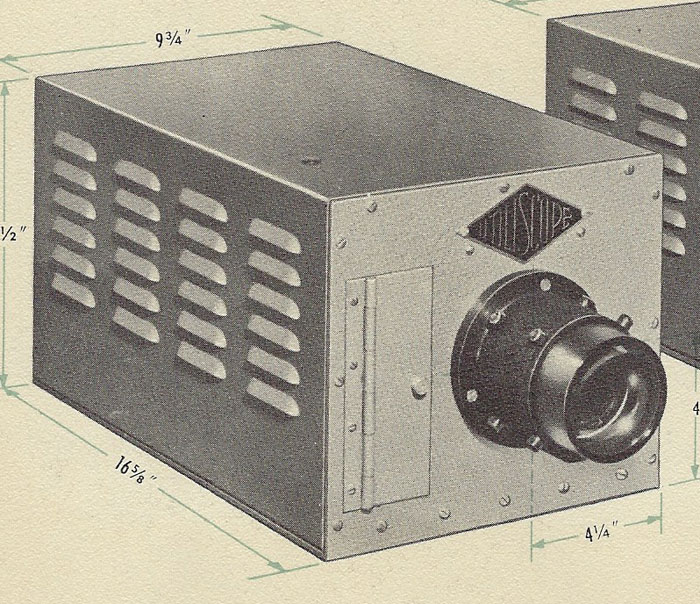

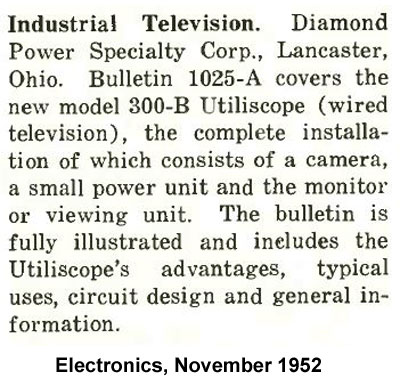

The model 300 is was an industrial televison camera using a image dissector tube. It was made in about 1949 by Diamond Power Co., located in Lancaster, Ohio. The image dissector tube was also made by Diamond. The camera was designed by the Capehart-Farnsworth Corp. of Ft. Wayne, Indiana. Thanks to Richard Hertel for providing pictures and technical papers.

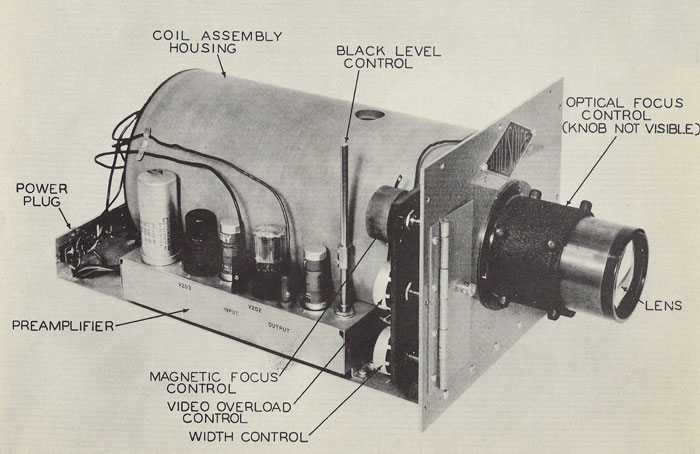

The camera itself has only two tubes in it, as video amplifiers, plus the dissector tube.

Early Television

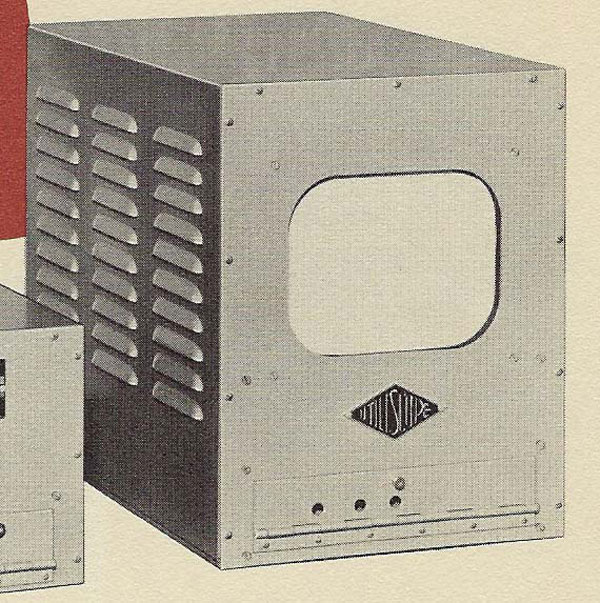

The monitor contains the horizontal and vertical sweep, additional video amplification and the high voltage power supply for the 10FP4 CRT.

Early Television

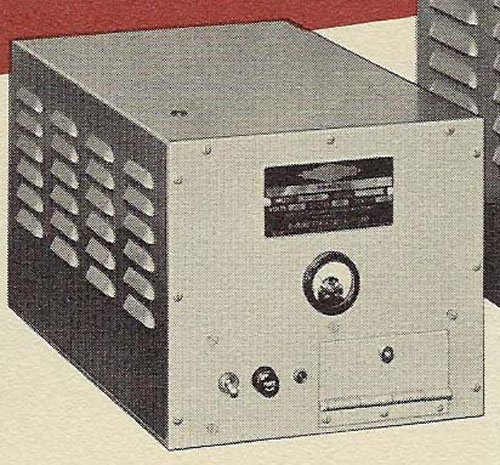

The power unit contains the horizontal and vertical oscillators, HV supply for the image dissector, and a blanking mixer.

Early Television
