RCA TK-1C Monoscope

Early Television

The TK-1C monoscope was used by television stations to produce the famous "Indian Head" test pattern. This one was used by WBNS-TV, channel 10 in Columbus, Ohio. It was donated to the museum by Daniel Black.

Early Television

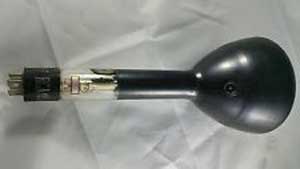

It uses the 2F21 monoscope tube

Early Television

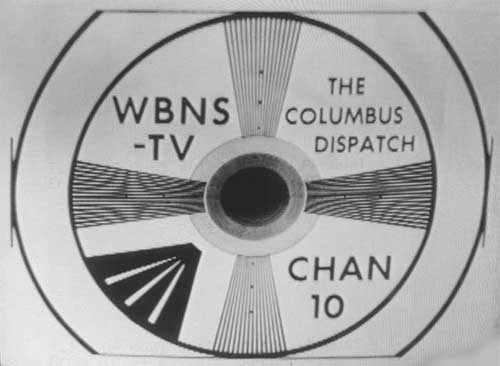

This tube was available in two versions, one with a generic pattern, and one with a custom pattern. This one has a custom pattern for WBNS-TV. We will be able to display it once the TK-1C is restored.

Early Television Early Television


I looked at the TK-1C and realized that the electrolytics had been replaced, so I decided to fire it up and see what would happen. I brought up the DC slowly and none of the electrolytics got warm. When I put the full 280 volts on it, a picture emerged.

Early Television

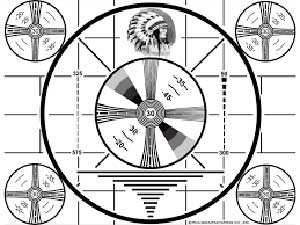

Here is the image from an Indian Head test pattern from a 2F21 tube:

Early Television

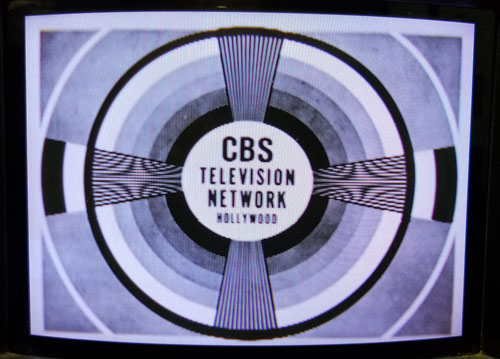

And here is one from a tube donated to us by Dan in California:

Early Television

Early Television

Early Television

TK-1C Specifications
TK-1C Manual

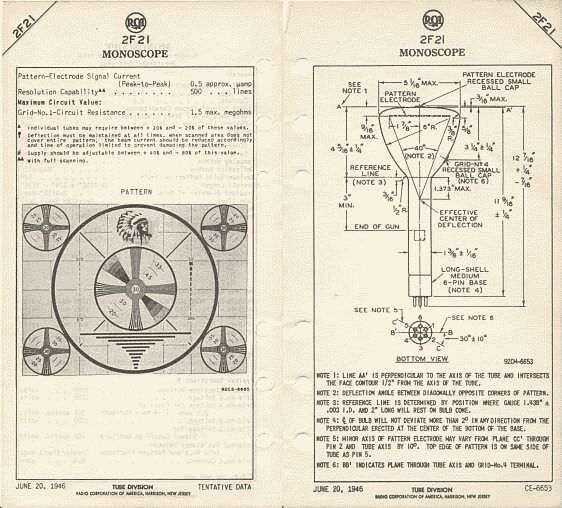

2F21 Data Sheet
ARI Monoscope
