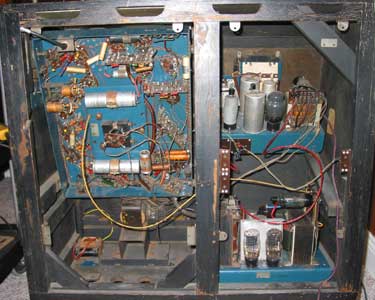

The rear of the set, with the TV chassis folded down (left) and up (right). The power pack chassis is visible on the right at the bottom. The radio chassis is on the top right side.

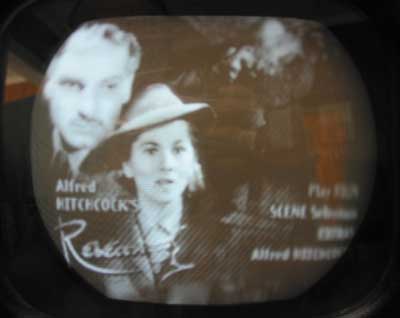

Here is a photo of the screen. Notice the herringbone pattern. Apparently this is normal, according to a factory bulletin. The set uses very low IF frequencies (4.2 mHz for the video, 750 KHz for the audio), resulting the the beat. The focus on the right side of the picture is poor. We will attempt to solve that problem. Repositioning the focus coil resulted in uniform focus. |
